液動膨脹式蒸汽疏水閥 Theraml static bellow steam trap
產品介紹：液體膨脹式的疏水閥的熱敏感原件為注滿易揮發的波紋管，啟閉閥門。
結構特點：1、排水溫度可以調節在70~100之間，使用方便。
2、能夠阻止高溫凝結水的排放，保持蒸汽管線的熱能。
3、連續排放，沒有噪音。蒸汽壓力的小波動沒有影響使用。
4、結構簡單，安裝方便，隨意。
5、具有良好的排空性能，不怕凍。零泄漏，背壓率達到75%以上。
Introduction:The heat sensing parts of bellow trap is the volatile bellow and check valve.
Structure:1.The temperature for discharging water ranges from 70℃ to 100℃.
2.Able to resist the discharge of condensed water of high temperature and keep the heat of the steam piplines.
3.The discharge for discharge of condensed water in continuous way without noise.The slight change of the steam pressure will not affedt its operation.
4.Simple structures will facilitate installation.
5.The smount of condensed water discharged will rise through the diameter expansion of the bellow.
6.Excellent abilities to discharge gas.No leskage;the rate of back pressure up to ablove 75%
技術參數表 Technological parameter date
Model 產品型號 |
Nominal diameter 公稱通徑（DN） |
Connection 連接方式 |
Pressure rating（MPa） 使用壓力 |
Max allowable（℃） 最高允許溫度 |

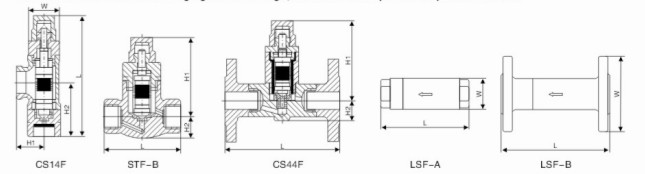

Extermal dimensions（mm） 外型尺寸 |
Re.weight 參考重量（Kg） |
|||
| L | H1 | H2 | W | ||||||
| CS14F-16C | 15~25 | Thread 螺紋 （角式） |
0.05~1.6 | 220 | 157 | 38 | 73 | 46 | 1.6 |
| 32 | 175 | 44 | 80 | 56 | 2.5 | ||||
| 40 | 185 | 51 | 90 | 62 | 3 | ||||
| 50 | 195 | 60 | 100 | 75 | 3.4 | ||||
| STF-B-16C (STB) (CS14F) |
15~20 | Thread 螺紋 （直通式） |
0.01~1.6 | 220 | 95 | 110 | 30 | 53 | 4.2 |
| 25 | 105 | 4.5 | |||||||
| 32~40 | 110 | 155 | 40 | 60 | 5 | ||||
| 50 | 120 | ||||||||
| STF-C-16C (STC) (CS44F) |
15~20 | Flange 法蘭 （直通式） |
150 | 110 | 30 | 53 | 7.7 | ||
| 25 | 160 | 9 | |||||||
| 32 | 210 | 155 | 40 | 60 | 1.2 | ||||
| 40~50 | 230 | 9 | |||||||
| LSF-A | 15~20 | Thread 螺紋 （立式） |
0.01~1.6 | 220 | 125 | 44 | 1.2 | ||
| 25 | 130 | 48 | 1.4 | ||||||
| 32~50 | 150 | 55 64 73 |
2 | ||||||
| LSF-B | 15 | Flange 法蘭 (l立式) |
150 | 95 | 2.6 | ||||
| 20 | 150 | 105 | 3 | ||||||
| 25 | 160 | 115 | 3.4 | ||||||
| 32 | 230 | 135 | 5.5 | ||||||
| 40 | 145 | 5.9 | |||||||
| 50 | 160 | 6.7 | |||||||
